20HP Industry Solid Material Screw Air Compressor with Stationary Configuration

Name: 20HP Industry Solid Material Screw Air Compressor with Stationary Configuration
Brand: JAGUAR
Price: 2 USD

Quality 20HP Industry Solid Material Screw Air Compressor with Stationary Configuration for sale

Applicable Industries : Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Advertising C

Showroom Location : None

Condition : New, New

Type : Screw, direct drive

Configuration : Stationary

Power Source : AC POWER

Lubrication Style : Lubricated

Mute : Yes

Place of Origin : Fujian, China

Brand Name : JAGUAR

Model Number : ZLS-20

Voltage : 415V/380V/220V/60HZ/50HZ

Dimension(L*W*H) : 1200*800*1160

Weight : 390KG

Warranty : 1 Year

Working Pressure : 8BAR

Air capacity : 2.4 M3/min

Machinery Test Report : Provided

Video outgoing-inspection : Not Available

Marketing Type : Ordinary Product

Warranty of core components : 1 Year

Core Components : PLC, Pressure vessel, Engine, Gear, Motor, Pump, Bearing, Gearbox

Gas Type : Air

After Warranty Service : Online support

Local Service Location : Germany, Viet Nam, Philippines, Indonesia, Pakistan, Mexico, Thailand, Malaysia, Australia, Bangladesh, South Africa

After-sales Service Provided : Online support

Certification : ISO9001/ASME/ISO45001/ISO14001/GCCA/SAQM/CMIIT

Packaging Details : Our packaging use fumigation wooden crate or carton.

Port : XIAMEN PORT

Supply Ability : 100 Piece/Pieces per Day

Price : $2,937.00/pieces 1-2 pieces

MOQ : 1 set

Contact Now

20HP Industry Solid Material Screw Air Compressor with Stationary Configuration

Coupling drive compressor of ZLS series

First of all, our compressor is driven by imported coupling, therefore the rotation rate is low, and then compressor’s structure is compact and convenient to maintain. The unique design of JAGUAR integrates the coaxial structure, which reduces the transmission components to make it bulk narrow and simultaneously improves its efficiency.

Secondly, technically, we reduce the link flange to reduce the noise of the machine, because it has low rotation rate and low noise, also reduces the damaged to the eardrum, it further effectively protects the eardrum.

1. JAGUAR High precision air-end

Due to the development of JAGUAR profiles and strengthening of steel bearings, our products have been repeatedly tested many times to provide customers with large discharge and the machine’s life is greatly increased.

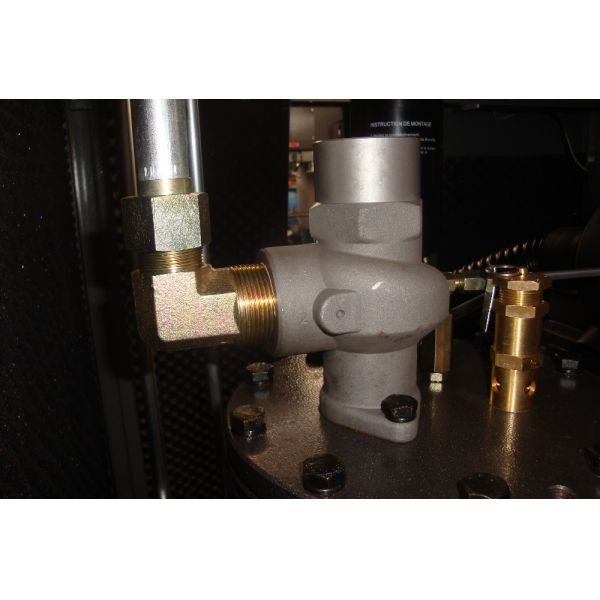

2. JAGUAR Pressure valve

We will configure the pressure valve based on customers’ demands and ensure that there’s no problem in the use process, according to the real pressure needs of customers to satisfy customers.

3. JAGUAR Intake valve

Using unique design for our large aperture is able to reduce pressure abrasion, thus machine can be used for a long time.

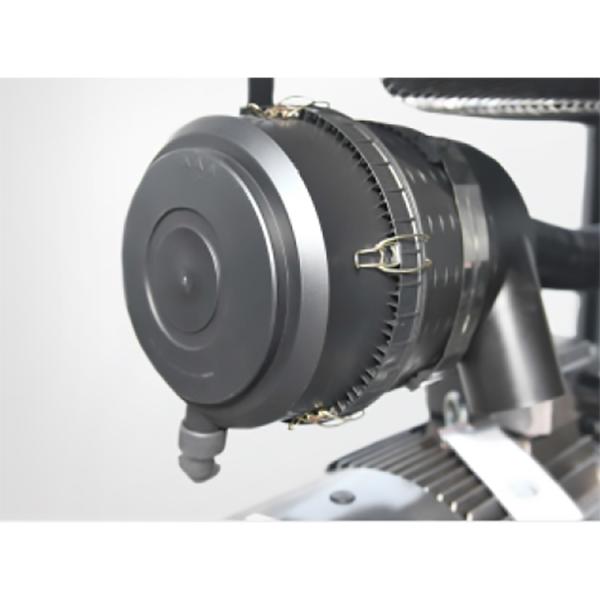

4. JAGUAR air filter

We use imported material filters to effectively filter 99% of impurities, simultaneously reduce the use cost for customers.

5.JAGUAR coupling

Why the JAGUAR compressor can generate few vibration, because the air-end and asynchronous motor use special gaskets, which can effectively reduce transmission vibration.

6.JAGUAR asynchronous motor

IP54 wind cooling system has substantially reduced the electric current, in addition to stabilizing the electric motor’s
temperature.

Specification

Company Profile

Company Introduction

Xiamen East Asia Machinery Industrial Co., Ltd. is a large-scale professional compressors manufacturer invested by Taiwan and the compressor brand is called JAGUAR. With its constant efforts and renovation, over 30 years’ experience of air compressor manufacturing, it provides outstanding compress air solutions for global customers by its JAGUAR brand air compressor, refrigerated air dryer, adsorption air dryer, and air tank.

In the present, hundreds of thousands of JAGUAR compressors are operating around the world. JAGUAR has a 30-year history and obtained many patents as well as certificates. Our research team has continuously developed and invested extremely in our product research. Furthermore, our management has strictly implementation in each process to ensure every product can reach standard and good quality.
JAGUAR is setting up for global network dealers, we want to provide excellent performance and customer service, therefore our professional sales team and technical service team will be always at your service.

Certifications

Product Application

Exhibition

Recommend Products

FAQ

1. Are you a factory or trading company? We are a large air compressor factory also we have a professional sale team.

2. How can I buy your air compressor? Please contact our salesman; they will help you.

3. What's your production capacity? We can produce 100 sets of screw air compressor in one day.

4. Can I be your dealer in my country? Yes, you are welcome to be our dealer.
